Engine and Gearbox

Please with the priming of the gearbox and back axle. I have now refitted the engine to the gearbox.

This was a fairly straightforward task of balancing the block on a trolley jack with the help of a ratchet strap and Jammer. Once done then aligning both the engine and gearbox before bolting up.

Not forgetting to coat the engine and gearbox mating surfaces and bolts with Duralac paste to prevent galvanic corrosion.

With the engine mounted, I fitted a new head gasket and replaced the head and rocker assembly. Pleased with my mornings work and over dinner with Carl and Phil, I decided to crack open some of last autumns cider.

The general consensus being that the work last Sept was worth it ! The bars been set. Up to Phil, Geoff and Rob to see if they can better it. Why is it in the blog? well its named after Tillie of course !!



More Bank Holidays

What a difference a Bank Holiday weekend makes. Or maybe its the recent good weather or, my recent tyre purchase? Whatever, it meant I was able to commit some real time to Tillie.

On Friday I spent a few hours wire brushing the final bits of old paint off the back axle and removing the Top Link Rocker. The location pin is rock hard so I still have the pleasure of removing the pin but have managed to remove the rocker.

The photo opposite shows a 'naked' Tillie. With the tractor now prepped time to turn my attention to priming. I have decided to use a enamel primed called 'Repaint' as I already have a tin of primer and thinners. The thought of spraying the tractor takes me back to my late teens, when everybody seemed to spend there lives repairing car body work with Isopon P38. I can still remember the smell of the Isopon (probably not a good thing!) and spending hours rubbing down filler and spraying car panels.

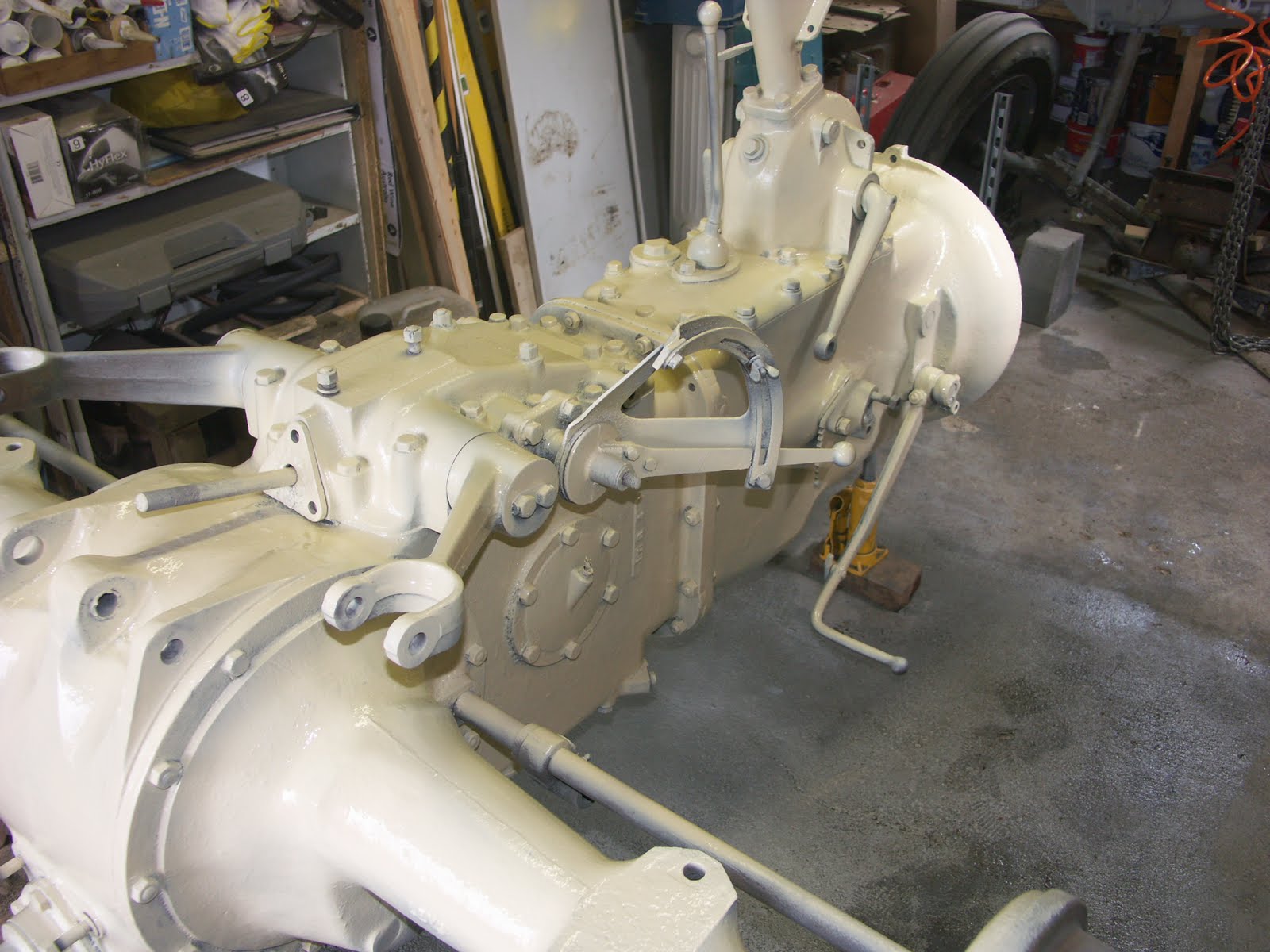

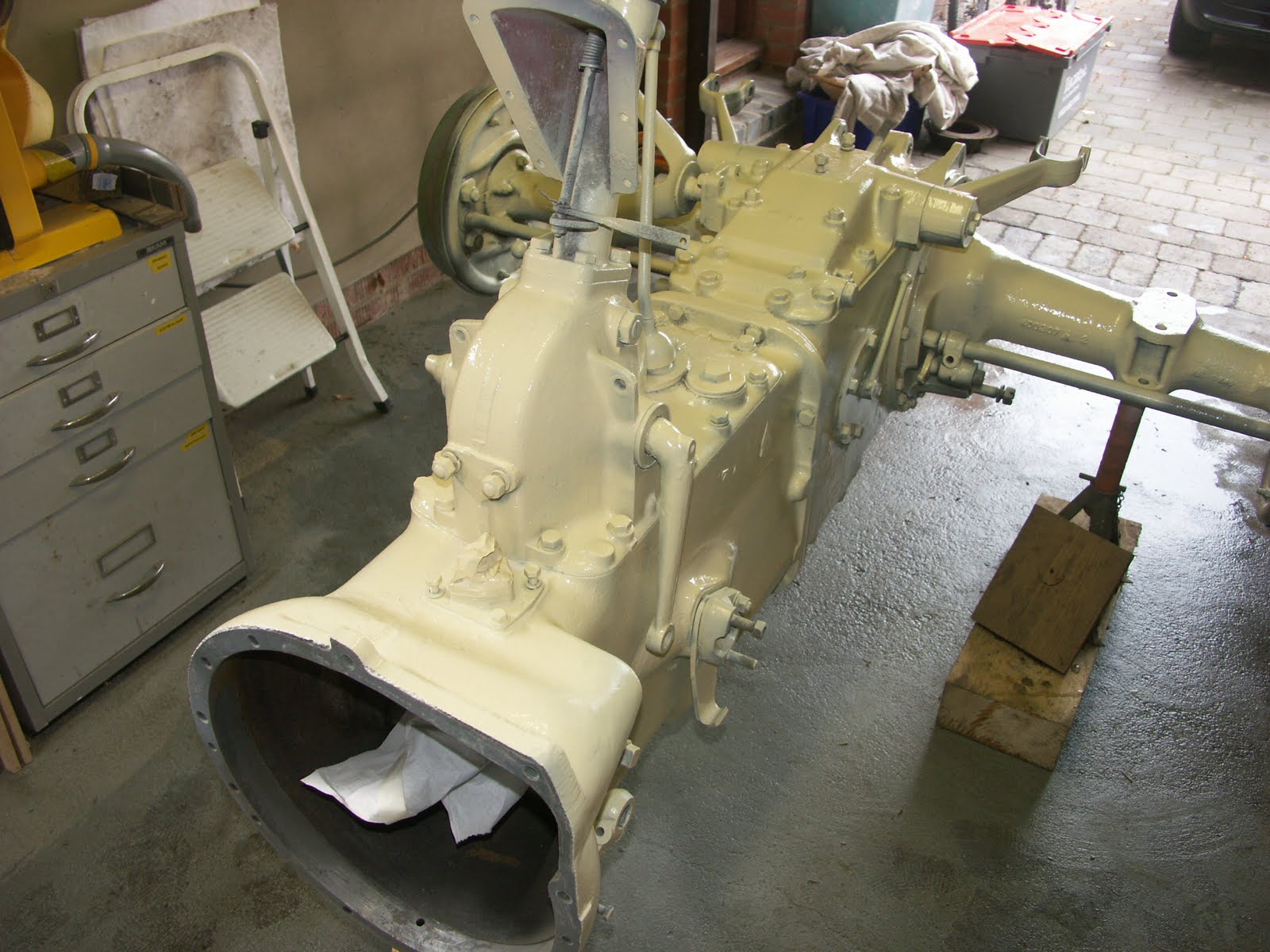

As can be seen from the next photos, the primer is a cream colour. This will help when I top coat the tractor in seeing where I've been and the depth of the top coat.

Spraying the primer has produced a good finish and I'm really pleased with the result.

This only took about an hour, so time to go to the Pub afterwards to settle the dust.

The plan is to leave the primer a couple of weeks to fully harden before top coating.

For the top coat, I already have some Agriline Ferguson Grey enamel so the plan is to prepare the dash, battery tray, track rods refit the engine and front axle before top coating.

It's satisfying to see the results all coming together.

New Rubber

Quick update,

Spotted a pair of rear tryes for sale on ebay. As Tillie currently only has grass tryes, thought these would complete the look. Deal done, a trip to Essex to collect and home.

Got home about midnight, with no sign of the trailer tailgate !!!!

Deciding that it couldn't have come off on the motorway, I retraced my route only to find it laying in the middle of the road in the next village to home. A real mystery how it became detatched ! But thankfully no damage done.

A quick hose down the next day and the tryes look good, brand new and unused a result.
